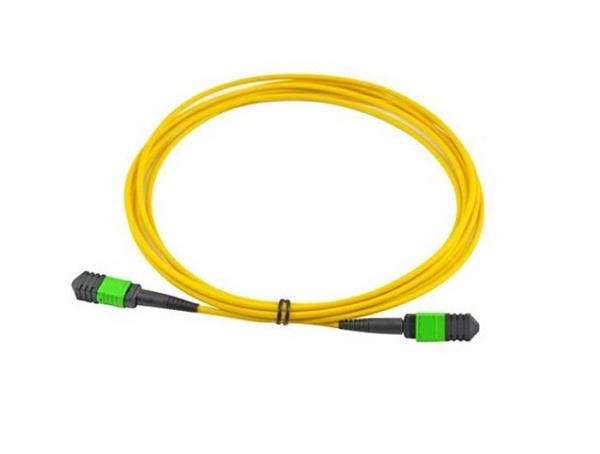

MPO - MPO Simplex Single Mode Fiber Optic Patch Cord 12 Core Yellow Color

    Buy cheap MPO - MPO Simplex Single Mode Fiber Optic Patch Cord 12 Core Yellow Color from wholesalers

    Buy cheap MPO - MPO Simplex Single Mode Fiber Optic Patch Cord 12 Core Yellow Color from wholesalers
    • Buy cheap MPO - MPO Simplex Single Mode Fiber Optic Patch Cord 12 Core Yellow Color from wholesalers

    MPO - MPO Simplex Single Mode Fiber Optic Patch Cord 12 Core Yellow Color

    Ask Lasest Price
    Model Number : Fiber Optic Patch Cord
    Certification : CE
    Price : Contact us for the price
    Payment Terms : Western Union, T/T
    Delivery Time : 10-15 days upon receipt of payment
    • Product Details
    • Company Profile

    MPO - MPO Simplex Single Mode Fiber Optic Patch Cord 12 Core Yellow Color

    MPO - MPO Simplex Single Mode 3.0MM Fiber Optic Patch Cord Types , LSZH


    MPO / MTP patch cord are designed to high density multi fibers solutions, fit for different installation environment and easy to install between the trunk line, data centers and buildings. Our trunk cables are 100% factory tested and can meet your special requirements.


    MPO Termination
    TypeSingle mode(APC polish)Multi mode(PC polish)
    Fiber count8, 12, 24 etc.8, 12, 24 etc.
    Fiber typeG652D, G657A1 etc.OM1, OM2, OM3, OM4 etc.
    Maximum Insertion LossStandardElite Low LossStandardElite Low Loss
    ≤0.75 dB≤0.35 dB≤0.75 dB≤0.35dB
    Return Loss≥55 dBN/A
    Working Temperature-40ºC ~ 80ºC-40ºC ~ 80ºC
    Test Wavelength1310nm850nm
    Generic Connector Termination
    TypeSingle modeMultimode
    UPCAPCPC
    Max. Insertion Loss≤0.3dB≤0.3dB≤0.3dB
    Typical Insertion Loss0.2dB0.2dB0.2dB
    Return Loss≥55dB≥65dB≥25dB
    Working Temperature-40ºC ~ 80ºC
    Test Wavelength1310nm850nm
